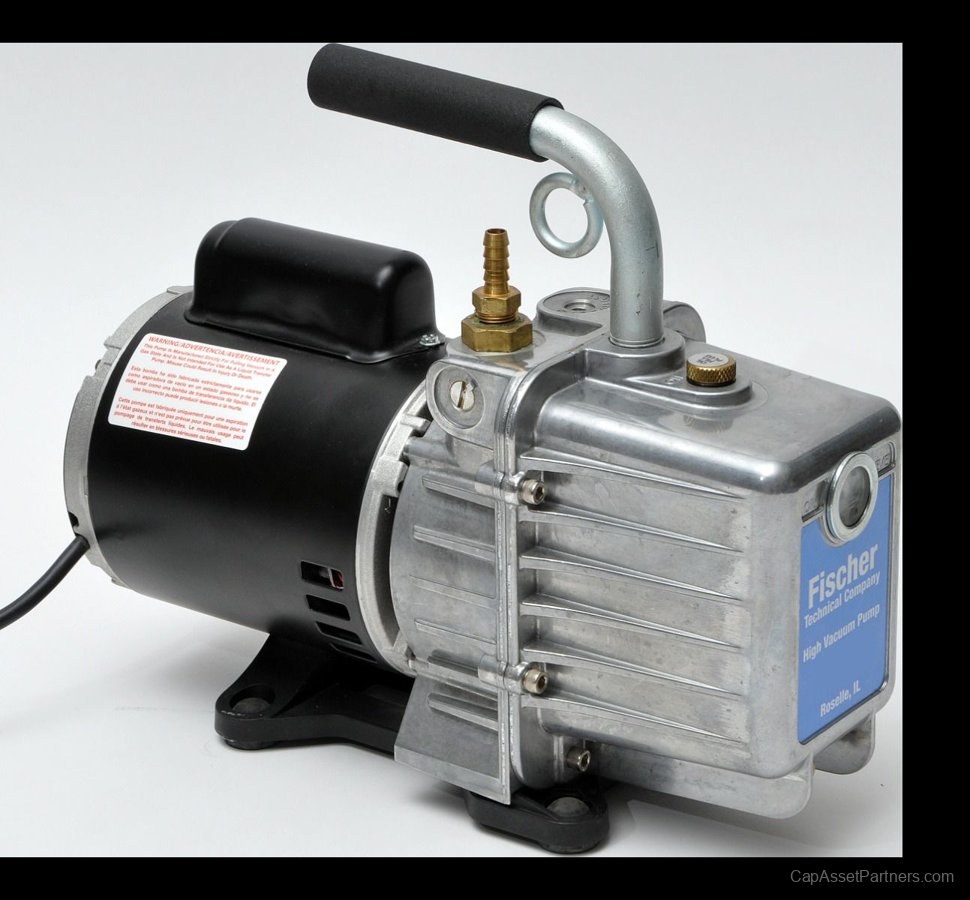

LAV Series High Vacuum Pump, 5 CFM
Introducing the LAV Series High Vacuum Pump, engineered for versatility and unparalleled performance in high vacuum applications. This rotary style, 2-stage direct drive pump operates at a robust 5 CFM (142 l/m) and is precision-tested to achieve a factory micron rating of 15 microns Hg. Perfect for laboratories requiring vacuums under 500 microns Hg, this pump is a reliable solution for various scientific and industrial needs.
Key Features and Specifications:
- Factory Micron Rating: 15 microns

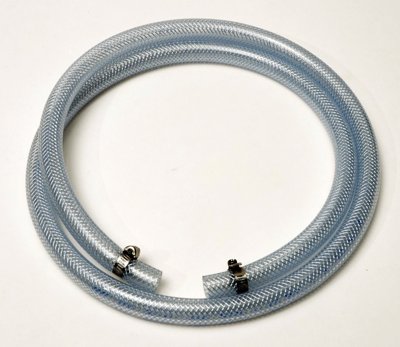

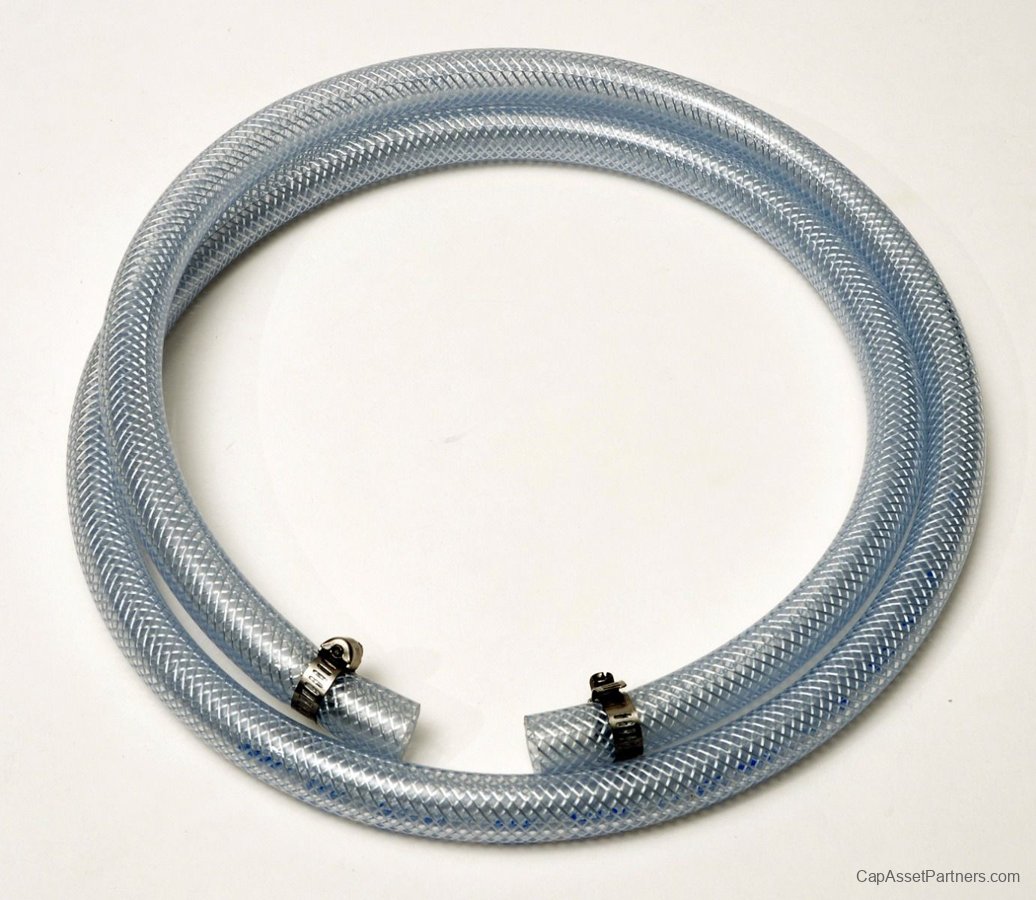

- Intake Fitting: 3/8" Intake Hose Barb
- Oil Refill Options: OIL-012 (12 Quarts) and OIL-PK (2 Quarts) included
- UL Recognized: Assurance of safety and quality
- Shipping Dimensions: 11 in H x 14 in L x 5 1/4 in W
- Manufactured in: United States
Technical Specifications:
| SKU |
Gauge |
Operating Temperature Range |
Recirculating Pump Speed |
Motor Type |
Oil Capacity |
| LAV-5/G/220 |

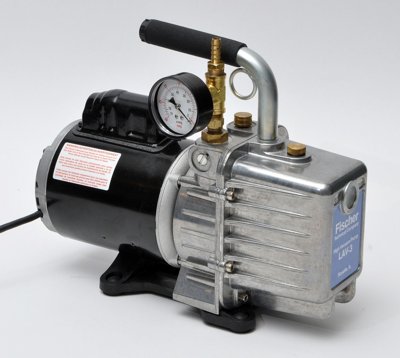

2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
| LAV-5/G |
2.5 in Diameter & 0-30 in Bourdon Tube Type Gauge |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
| LAV-5 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
| LAV-5/220 |
- |
30°F to 170°F |
1725 RPM |
1/2 HP |
23 oz |
Additional Information:
| SKU |
Certification |
Country of Manufacture |
| LAV-5/G/220 |
UL Recognized |
United States |
| LAV-5/G |
UL Recognized |
United States |
| LAV-5 |
UL Recognized |
United States |
| LAV-5/220 |
UL Recognized |
United States |

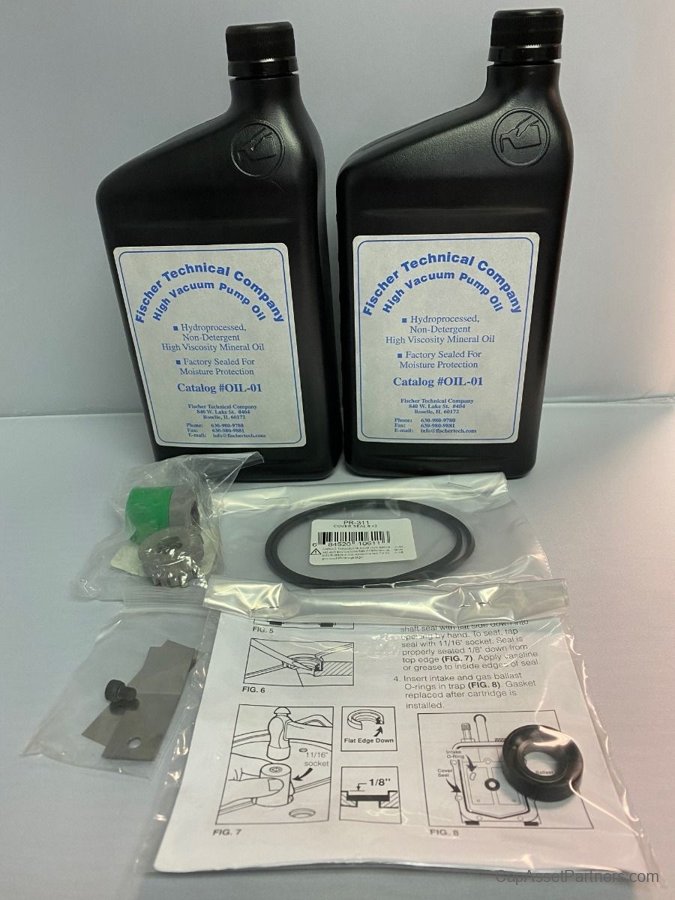

Each pump comes with high vacuum pump oil (one quart included) and the design is optimized for closed and dry systems. Routine oil changes and proper maintenance will ensure the longevity and reliable operation of the LAV Series High Vacuum Pump in your laboratory setting.
