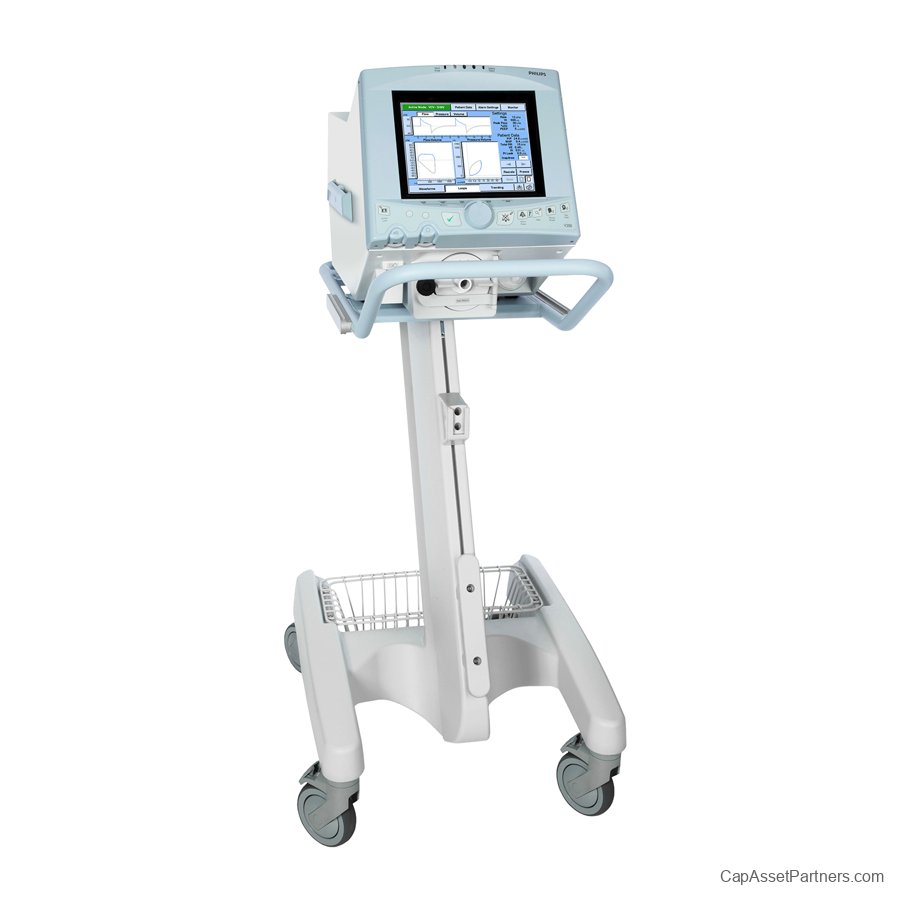

Respironics V200 Ventilator

Discover the Respironics V200 Ventilator, a critical care solution designed to enhance patient comfort and streamline caregiver processes. With its advanced synchronization options and state-of-the-art ventilation modes, the V200 significantly reduces the work of breathing, making it an essential tool for effective respiratory management.
The V200 caters to both invasive and noninvasive ventilation needs. For those requiring invasive support, it features instantly recognizable modes powered by sophisticated breath delivery algorithms such as Auto-Trak, Flow-Trak, and Baby-Trak. These technologies are specifically engineered to optimize patient-ventilator synchrony, ensuring efficient and effective ventilation for all patients.
When it comes to noninvasive ventilation (NIV), the Respironics V200 operates similarly to the BiPAP Vision, incorporating Auto-Trak for seamless functionality. It simplifies the NIV process by offering spontaneous breathing (S) and timed back-up (S/T) modes with adjustable IPAP and EPAP settings, making it user-friendly for both seasoned and novice caregivers.
Trust the Respironics V200 Ventilator for versatile, reliable respiratory support in any clinical setting. Its ability to connect with Philips patient monitors and hospital information systems ensures an uninterrupted flow of ventilation data, supporting integrated patient care with ease. Experience unmatched ventilation solutions that meet the diverse needs of all patient populations.

Respironics V200 Ventilator Specifications

General

• Patient Types:

• Adult

• Neonates ? 0.5 kg

Breath Types

• Volume Control Ventilation (VCV)

• Pressure Control Ventilation (PCV)

Modes

• A/C Assist/Control

• CPAP (Continuous Positive Airway Pressure)

• NIV (Noninvasive Ventilation)

• PSV (Pressure Support Ventilation)

• SIMV (Synchronized Intermittent Mandatory Ventilation)

• SIMV/PSV (SIMV with Pressure Support)

Alarms

• Low Pressure: Visual/Continuous Audible

• High Pressure: Intermittent Audible

• Apnea: Visual/Continuous Audible

• Inverse I:E Ratio: Visual Warning

• Increase Inspiratory Flow: Visual Warning

• Low Internal Battery: Visual/Continuous Audible

• Low External Battery: Visual/Continuous Audible

• Reverse Battery Connection: Continuous Audible

• Power Failure: Continuous Audible

• Unit Malfunction: Intermittent Audible

• Power Source Change: Continuous Audible

• Oxygen: Continuous Audible

Power Sources

• 120 VAC, 50/60 Hz

• 12 VDC External Battery

• 12 VDC Internal Battery

Physical Dimensions

• Overall Dimensions: 9" (H) × 12.25" (W) × 12.25" (D) (22.9 cm × 31.1 cm × 31.1 cm)

• Weight: 28.9 lb (13.1 kg)
