Steris System 1

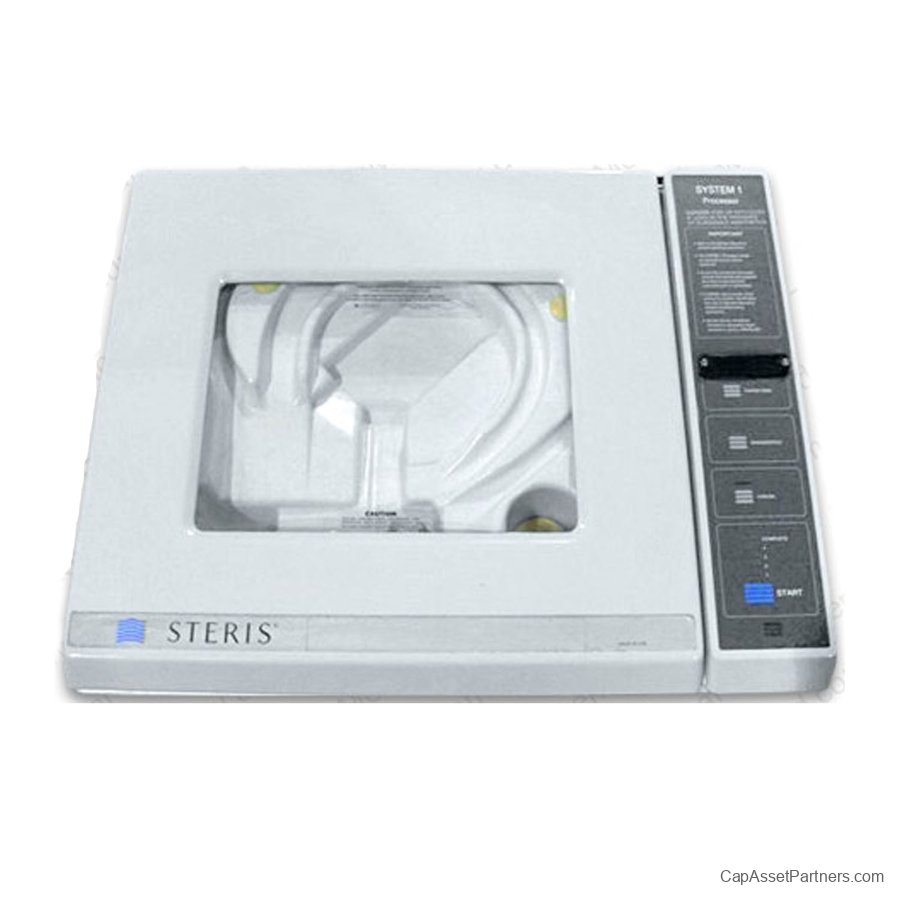

STERIS System 1 Overview

The STERIS System 1 is a state-of-the-art automated processor dedicated to ensuring effective and standardized sterile processing of medical devices. Engineered with a microcomputer control system, it maintains crucial process parameters within an environmentally sealed chamber, creating optimal conditions for sterilization. The device is specifically designed to adhere to the safe temperature limits recommended by most manufacturers, thereby protecting heat-sensitive instruments throughout the processing cycle.

Key Features

Upon completion of each sterilization cycle, the STERIS System 1 generates a comprehensive printout, delivering vital documentation of the process and load information.
The system accommodates a diverse range of devices and procedure-specific sets thanks to its specialized processing trays and containers. These are meticulously crafted to position devices correctly, ensuring a continuous exchange of sterilant and rinse on all exposed surfaces, including internal structures and lumens. Moreover, the design helps to safeguard sensitive devices from potential environmental contamination during transportation to the sterile field.

Specifications

Space and Weight Requirements:

• Width: 38" (97 cm)

• Depth: 24" (61 cm)

• Height: 32" (81 cm)

• Weight: 200 lbs (68 kg)

Electrical Requirements:

• Voltage:

• 120 VAC nominal, 60 Hz, 15A

• 230 VAC nominal, 50 Hz, 7 A delayed fuse

• Service:

• 120 Volt, 20 amp., 60 Hz dedicated circuit (hospital grade)

• GFCI double receptacle

• 230 Volt, 10 amp, 50 Hz dedicated circuit with FI safety switch (2-5 mA)

Water Requirements:

• Pressure: 40 - 50 psig (2.8 - 3.5 bar)

• Flow Rate: 4 gpm (15 Lpm) at 40 psig (2.8 bar)

• Temperature: 110 - 118°F (43 - 48°C), preferred at 115 - 118°F (46 - 48°C)

• Supply Line Size: 1/2" 1.0 minimum

• Connection: 3/4" male hose connector

• Quality: Potable/tap water

• Drain: 1 1/4" 1.0 (minimum) non-backpressuring drain

• Water usage: Approximately 13.3 gal (50 L) per sterile processing cycle

Environmental Requirements:

• Room Temperature: 60 - 90°F (15.5 - 32°C)

• Humidity: 10 - 90% relative, non-condensing

Conclusion

The STERIS System 1 stands out as an essential tool for any healthcare facility committed to delivering high standards of sterile processing. Its efficient design and comprehensive documentation capabilities elevate the assurance of safety and effectiveness in medical device sterilization.

Steris System 1 Specifications:

• Type: Low-temperature sterilization system

• Dimensions:

• Height: 35 in (89 cm)

• Width: 24 in (61 cm)

• Depth: 28 in (71 cm)

• Weight: 250 lbs (113 kg)

• Electrical Requirements:

• Voltage: 120 V

• Frequency: 60 Hz

• Amperage: 15 A

• Sterilization Agent:

• Hydrogen Peroxide

• Cycle Time:

• 30 to 75 minutes (depending on load and settings)

• Chamber Capacity:

• Approximately 1.2 cu ft (34 liters)

• Operating Temperature:

• Minimum: 20 °C (68 °F)

• Maximum: 40 °C (104 °F)

• Humidity Range:

• 30% to 80% relative humidity

• Control Interface: LCD display with touch controls

• Filtration System:

• HEPA filter included

• Warranty: Typically 1 year (verify with manufacturer for specifics)

Please verify these specifications against official Steris documentation or contact the manufacturer for the most accurate and current information.
