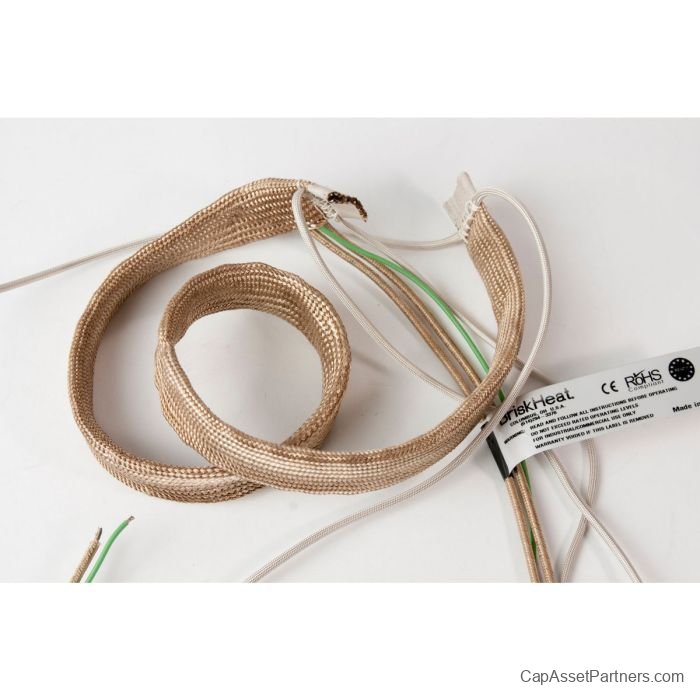

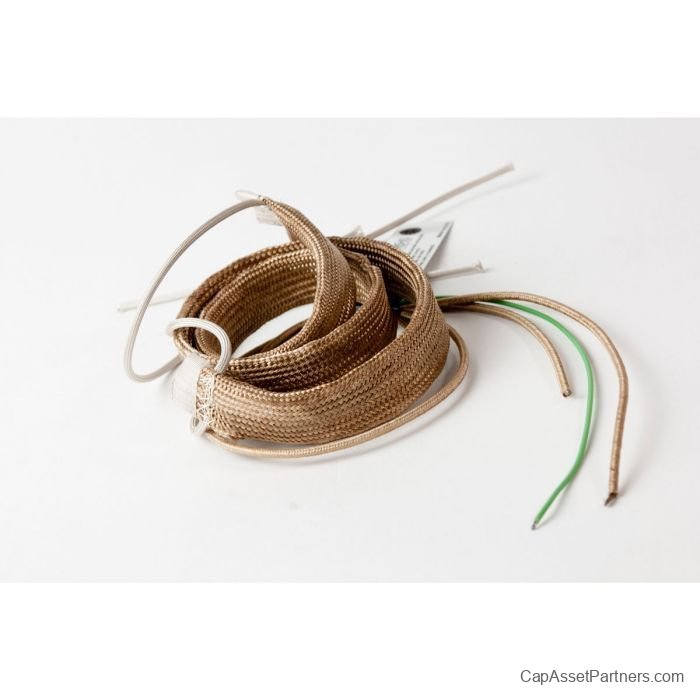

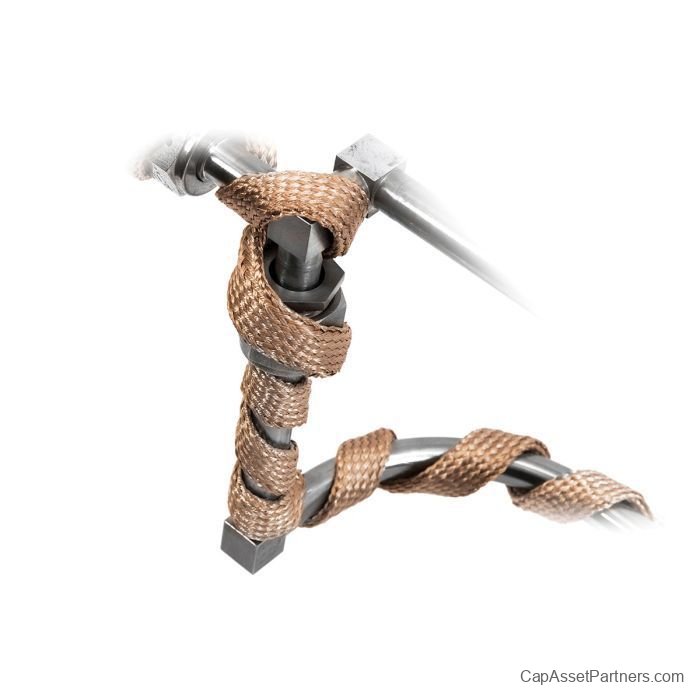

BIH-G Grounded Heavy Insulated Heating Tapes
Introducing the BIH-G Grounded Heavy Insulated Heating Tapes, expertly engineered for optimal performance in laboratory and industrial settings that demand dependable heating solutions. Constructed with a multi-stranded resistance wire heating element encased in a durable fiberglass sheath, these heating tapes ensure robust electrical insulation while delivering precise heating capabilities.
Designed for surfaces that require electrical conductivity, the BIH-G heating tapes are perfect for applications requiring high temperatures. With a rapid thermal response time, these tapes ensure that your equipment reaches the desired temperature swiftly, making them an essential addition to any laboratory or industrial environment.
Key Features:
- Compatible with electrically conductive surfaces for versatile applications.
- Equipped with high-temperature tie downs for streamlined installation.
- Maximum exposure temperatures reaching up to 482°F (250°C), suitable for demanding conditions.
- Exceptional flexibility allows for easy handling and installation in various setups.
- Designed for rapid thermal response, ensuring effective performance when needed most.
Note: A temperature controller is necessary for the safe operation of this product.
Specifications:
SKU |
Max Temperature |
Density |
BIH101020LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH101040LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH101060LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH101080LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH101100LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH102020LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH102040LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH102060LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH102080LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
BIH102100LG |
Up to 482°F (250°C) |
9.6 W/in² (1.5 W/cm²) |
Additional Information:
SKU |
Material |
Certification |
Wattage |
Plug Type |
BIH101020LG |
Fiberglass |
REACH, RoHS |
230W |
Bare Wire Leads |
BIH101040LG |
Fiberglass |
REACH, RoHS |
230W |
Bare Wire Leads |
BIH101060LG |
Fiberglass |
REACH, RoHS |
690W |
Bare Wire Leads |
BIH101080LG |
Fiberglass |
REACH, RoHS |
920W |
Bare Wire Leads |
BIH101100LG |
Fiberglass |
REACH, RoHS |
1150W |
Bare Wire Leads |
BIH102020LG |
Fiberglass |
REACH, RoHS |
230W |
Bare Wire Leads |
BIH102040LG |
Fiberglass |
REACH, RoHS |
230W |
Bare Wire Leads |
BIH102060LG |
Fiberglass |
REACH, RoHS |
690W |
Bare Wire Leads |
BIH102080LG |
Fiberglass |
REACH, RoHS |
920W |
Bare Wire Leads |
BIH102100LG |
Fiberglass |
REACH, RoHS |
1150W |
Bare Wire Leads |
