CRVpro Direct Drive Rotary Vane Vacuum Pumps

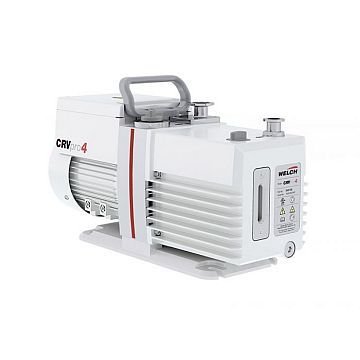

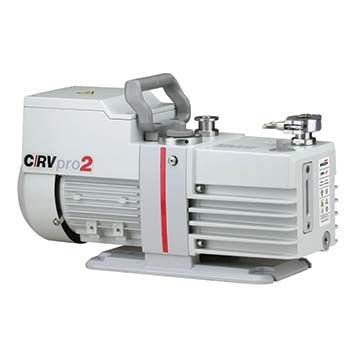

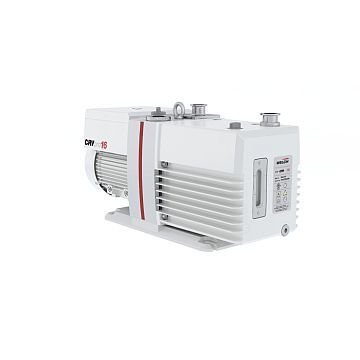

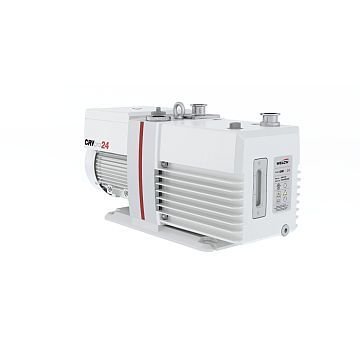

Discover the unparalleled reliability and performance of the CRVpro Direct Drive Rotary Vane Vacuum Pumps, specially designed for demanding lab applications. Each pump operates as a two-stage, direct-driven unit, ensuring higher efficiency and satisfaction. The CRVpro series, including models 2, 4, 5, 6, and 8, feature switch-selectable options for 115V, 60Hz and 230V, 50/60Hz operation, while the CRVpro 16, 24, and 30 models are dedicated to either voltage standard.

Innovative Design and Construction

Engineered for enhanced airflow, CRVpro pumps operate at temperatures up to 10°C cooler than standard rotary vane pumps. This reduction in temperature not only minimizes chemical activity within the pump but also significantly extends oil life. Both the inner surface of the oil case and the outer surface of the pumping module are coated with PTFE and black oxide, respectively, to reduce corrosion. When paired with foreline traps, these coatings contribute to extended service intervals.

The larger oil capacity allows for better dilution of chemical vapors, lowering the breakdown of oil and protecting the pump from potential chemical damage.

Key Features

Whisper-quiet operation to maintain an undisturbed work environment

Force Oil Lubrication system keeps moving parts saturated with fresh oil, stabilizing temperature and minimizing wear

Anti Suck Back Valve protects your applications by preventing oil backflow during power outages

Gas Ballast with Inert Gas option minimizes the risk of condensable liquids entering the pump

cUL / CE Certification ensuring compliance with safety and regulatory standards

Modern, compact design tailored for various applications and performance needs

Dual voltage motors adhere to IP54 standards for dust and water resistance

Specifications

SKU	Includes	Ultimate Pressure	Air Displacement	Motor Power	Motor Speed	Ambient Temperature Range
3021-01	Pump Oil, 2 Centering Rings, 2 Clamps	7 x 10^-2 Torr with Gas Ballast	41.7 L/min @50 Hz, 50 L/min @60Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C
3041-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-2 Torr with Gas Ballast	67 L/min @50Hz, 78 L/min @60Hz	0.37 kW @ 50 Hz, 0.4 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C
3061-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-2 Torr with Gas Ballast	100 L/min @50Hz, 118 L/min @60Hz	0.37 kW @ 50 Hz, 0.4 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C
3081-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-2 Torr with Gas Ballast	133 L/min @50Hz, 158 L/min @60Hz	0.37 kW @ 50 Hz, 0.4 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C
3161-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-3 Torr with Gas Ballast	305 L/min @50Hz, 363 L/min @60Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	1450 rpm @ 50 Hz, 1750 rpm @ 60Hz	10°C - 40°C
3241-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-3 Torr with Gas Ballast	436 L/min @50Hz, 519 L/min @60Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	1450 rpm @ 50 Hz, 1750 rpm @ 60Hz	10°C - 40°C
3301-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-3 Torr with Gas Ballast	551 L/min @50Hz, 627 L/min @60Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	1450 rpm @ 50 Hz, 1750 rpm @ 60Hz	10°C - 40°C

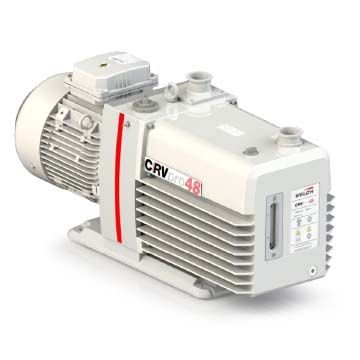

3487T-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-3 Torr with Gas Ballast	928 L/min @50 Hz, 1113 L/min @60Hz	2.2 kW	1430 rpm @ 50 Hz	10°C - 40°C

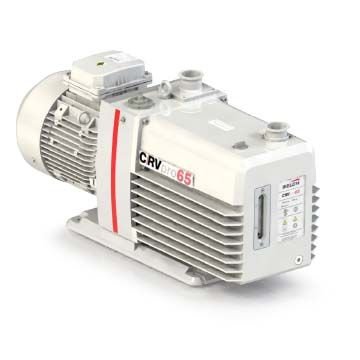

3657T-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-3 Torr with Gas Ballast	1238 L/min @50 Hz, 1487 L/min @60Hz	2.2 kW	1430 rpm @ 50 Hz	10°C - 40°C
3166E-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-3 Torr with Gas Ballast	305 L/min @50Hz, 363 L/min @60Hz	0.7 kW @ 50 Hz, 0.85 kW @ 60Hz	1450 rpm @ 50 Hz, 1750 rpm @ 60Hz	10°C - 40°C
3086E-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-2 Torr with Gas Ballast	133 L/min @50Hz, 158 L/min @60Hz	0.37 kW @ 50 Hz, 0.4 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C
3046E-01	Pump Oil, 2 Centering Rings, 2 Clamps	5 x 10^-2 Torr with Gas Ballast	67 L/min @50Hz, 78 L/min @60Hz	0.37 kW @ 50 Hz, 0.4 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C
3081-80	Pump Oil, 2 Centering Rings, 2 Clamps	1.5 x 10^-3 Torr with Gas Ballast	5.6 cfm (160 L/min) @60Hz	0.37 kW @ 50 Hz, 0.4 kW @ 60Hz	1450 rpm @ 50 Hz, 1740 rpm @ 60Hz	10°C - 40°C

Additional Information

SKU	Material	Dimensions	Certification	Power Requirement	Sound Pressure Level	Oil Capacity	Pump Connections	Plug Type
3021-01	PTFE, Black Oxide	15.1 in x 5.4 in x 9.2 in	cUL, CE	115V, 60Hz, 1 Phase	50 dB	450 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	NEMA 5-15
3041-01	PTFE, Black Oxide	18.2 in x 6.1 in x 9.1 in	cUL, CE	115V, 60Hz, 1 Phase	50 dB	1150 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	NEMA 5-15
3061-01	PTFE, Black Oxide	18.2 in x 6.1 in x 9.1 in	cUL, CE	115V, 60Hz, 1 Phase	50 dB	1150 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	NEMA 5-15
3081-01	PTFE, Black Oxide	18.2 in x 6.1 in x 9.1 in	cUL, CE	115V, 60Hz, 1 Phase	50 dB	1000 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	NEMA 5-15
3161-01	PTFE, Black Oxide	22.4 in x 8.1 in x 11.4	cUL, CE	115V, 60Hz, 1 Phase	55 dB	2400 mL	NW25 3/4 in (19 mm)	NEMA 5-15
3241-01	PTFE, Black Oxide	22.4 in x 8.1 in x 11.4	cUL, CE	115V, 60Hz, 1 Phase	55 dB	2200 mL	NW25 3/4 in (19 mm)	NEMA 5-15
3301-01	PTFE, Black Oxide	22.4 in x 8.1 in x 11.4	cUL, CE	115V, 60Hz, 1 Phase	55 dB	2100 mL	NW25 3/4 in (19 mm)	NEMA 5-15
3487T-01	PTFE, Black Oxide	37 in x 18.1 in x 18.1 in	cUL, CE	115V, 60Hz, 3 Phase	58 dB	4500 mL	NW40	NEMA 5-15
3657T-01	PTFE, Black Oxide	37 in x 18.1 in x 18.1 in	cUL, CE	115V, 60Hz, 3 Phase	58 dB	4000 mL	NW40	NEMA 5-15
3166E-01	PTFE, Black Oxide	30 in x 12 in x 12 in	cUL, CE	115V/208-230V, 60Hz, 1 Phase	55 dB	2400 mL	NW25 3/4 in (19 mm)	No cord, plug or switch provided
3086E-01	PTFE, Black Oxide	32 in x 16 in x 13 in	cUL, CE	115V/208-230V, 60Hz, 1 Phase	50 dB	1000 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	No cord, plug or switch provided
3046E-01	PTFE, Black Oxide	32 in x 16 in x 13.3 in	cUL, CE	115V/208-230V, 60Hz, 1 Phase	50 dB	1150 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	No cord, plug or switch provided
3081-80	PTFE, Black Oxide	18.2 in x 11.1 in x 9.2 in	cUL, CE	115V, 60Hz, 1 Phase	50 dB	1000 mL	NW16 5/8 in - 3/4 in (16 - 19 mm)	NEMA 5-15

Note: It is crucial to have a certified electrician perform the installation for pumps with 3 phase or explosion-proof motors. Conduit wiring is required; pumps do not include cords, plugs, or switches.

All dimensions are specified without the handle, which is included with every CRVpro pump.
